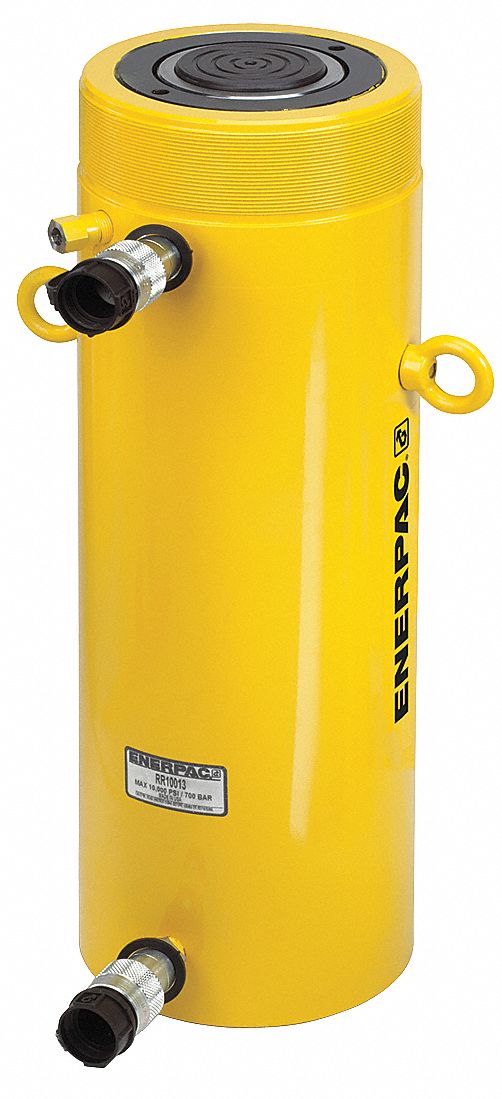

Hydraulic Ram 100 ton 18-1/8 Stroke

Hydraulic Ram 100 ton 18-1/8 Stroke

Proveedor: ENERPAC
SKU: 23NR27

Cotizar

Hydraulic Ram Double Acting General Purpose Steel Nominal Capacity 100 ton Max Push Capacity 100 ton Stroke Length 18 1/8 in Nominal Stroke Length 18 in Effective Push Area 20.65 sq in Max Pressure 10 000 psi Oil Capacity Push 374.44 cu in Retracted Height 27.06 in Extended Height 45.19 in Outside Dia 7 in Plunger Dia 3.75 in Plunger Thread Size 1-3/4 In.-12 Collar Thread Size 6-7/8 In.-12 Base Bolt Circle Dia 5.5 in Center Hole Dia 5 1/8 in Series RR
