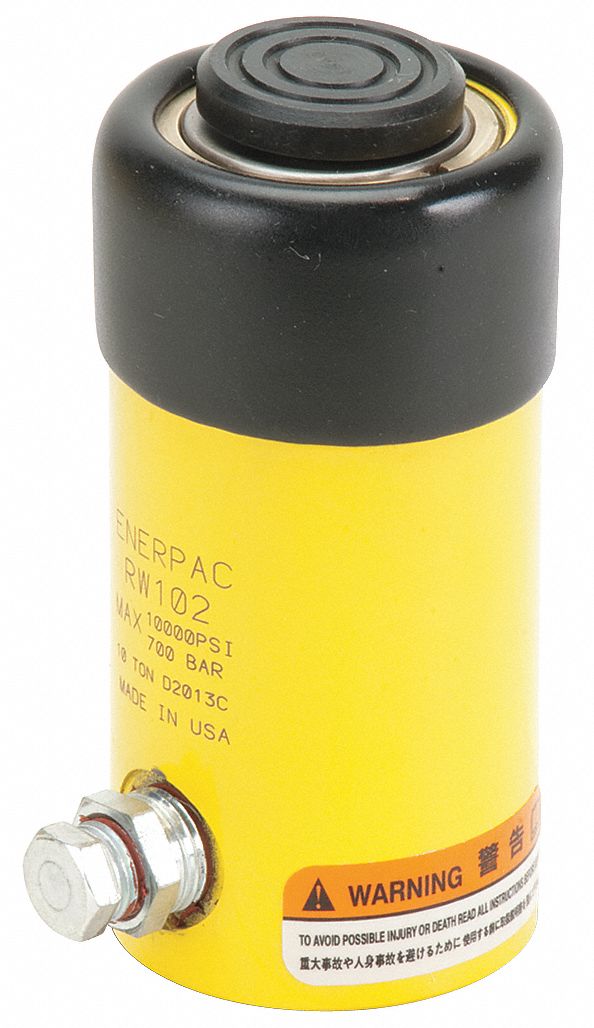

Hydraulic Ram 10 ton 2-1/8 Stroke

Hydraulic Ram 10 ton 2-1/8 Stroke

Proveedor: ENERPAC
SKU: 23NP44

Cotizar

Hydraulic Ram Single Acting General Purpose Steel Nominal Capacity 10 ton Max Push Capacity 10 ton Stroke Length 2 1/8 in Nominal Stroke Length 2 in Effective Push Area 2.23 sq in Max Pressure 10 000 psi Oil Capacity Push 4.75 cu in Retracted Height 4.78 in Extended Height 7.01 in Outside Dia 2.25 in Plunger Dia 1.38 in Plunger Thread Size 1 In.-8 Base Bolt Circle Dia 1.56 in Center Hole Dia 1 1/2 in Series RW Includes Saddle
